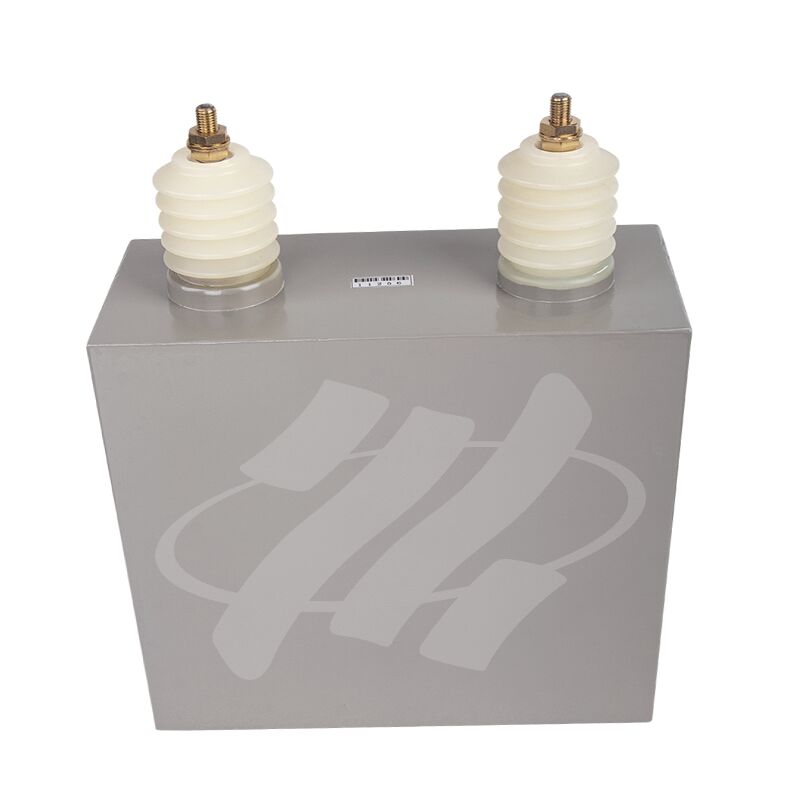

XHCC-4/35
Overview
The pulse energy storage capacitor is manufactured with imported films and adopts a non-inductive winding structure, boasting excellent self-healing and explosion-proof performance. It features reliable construction, zero leakage, no pollution, moisture resistance, fire resistance, long service life, compact size and light weight.
Applications
The pulse energy storage capacitor stores the electrical energy charged from low-power power supplies at fixed time intervals. At a required moment, it releases the stored energy rapidly within an extremely short period, generating intense impulse current and high impulse power. It is mainly applied in fields such as high-voltage impulse discharge testing, high-energy physics, oscillation circuits and geological prospecting.
Technical Parameters:Ambient temperature: -20～+50℃;
Altitude: ≤2000 meters, altitudes greater than 2000 meters require separate specifications;
Capacitance tolerance: ±5%;
Rated capacitance: 4uF
Rated voltage level: 35kV
If you are interested in this type of equipment, please feel free to contact us. We also accept custom orders.
