Factory Supplier Potable Power Cable Identifier Multiple Frequency to Identify

Name: Factory Supplier Potable Power Cable Identifier Multiple Frequency to Identify
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHSB505DS
Price: 1,050.00 USD
Availability: InStock

उत्पाद का विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	XZH Test
प्रमाणन:	CE/ISO
मॉडल संख्या:	XHSB505DS

विस्तृत जानकारी

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

XZH Test

प्रमाणन:

CE/ISO

मॉडल संख्या:

XHSB505DS

प्रमुखता देना:

High Light

प्रमुखता देना:

portable power cable identifier

multiple frequency cable locator

cable fault locator with warranty

Trading Information

न्यूनतम आदेश मात्रा:

1unit

पैकेजिंग विवरण:

लकड़ी का बक्सा

प्रसव के समय:

5-8work दिन

भुगतान शर्तें:

टी/टी

आपूर्ति की क्षमता:

2000 यूनिट/वर्ष

उत्पाद का वर्णन

XHSB505DS

Model NO.

XHSB505DS

Certification

CE, ISO

Transport Package

Wooden

Specification

420mm× 250mm× 340mm

Trademark

XZH TEST

Origin

China Xi'an

HS Code

9031809090

Production Capacity

100 Pieces /Year

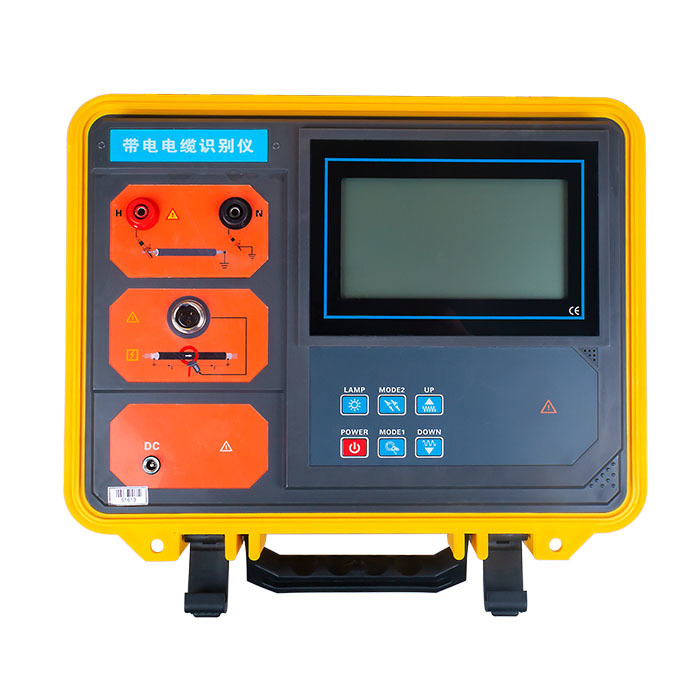

This product offers live and de - energized cable identification, AC current and voltage testing. It includes a transmitter, a current clamp for transmission, a receiver, and a flexible current clamp for reception. The voltage range for cable testing is AC 0 - 600V (50Hz/60Hz), the AC current range is 0 - 5000A (50Hz/60Hz), and it can measure current frequencies from 45Hz to 70Hz.

Main Function

Handheld type receiver has 3.5inch color LCD Screen
Transmitter adopts integrated special toolbox design, Good wear resistance, heat resistance and insulation performance.
Large-diameter clamp size Φ120mm
Multiple frequency to identify energy cable625Hz,1562Hz,2500Hz,10kHz
11.1V large-capacity rechargeable lithium battery, fully charged and continuously working for about 8 hours
De-energy cable identifying distance up to 10km, energy cable indentifying distance up to 5km
International standard IEC61010-1 CAT 600V,IEC61010-031,IEC61326. Pollution degree 2

Test range	De-energy cable identifying: The coil can detect pulse signals with a loop resistance of 0Ω~10kΩ; when the detection loop resistance is 10kΩ, the transmitter battery must be guaranteed to be above 11V (generally, the cable length can reach 0-10 kilometers, mainly by grounding resistance and wire Cable resistance)
Test range	Energy cable identifying: The coil can detect pulse signals with a loop resistance of 0Ω~200Ω; when the detection loop resistance is 200Ω, the transmitter battery must be guaranteed to be above 11V (generally it can reach a cable length of 0-5 kilometers, mainly by grounding resistance and wire Cable resistance)
Range	AC Voltage: 0.00V~600V(50Hz/60Hz)
	AC Current: 0.00A~5000A(50Hz/60Hz)
	Current frq: 45Hz~70Hz
Accuracy	AC Voltage :±2%±3dgt
	AC Current :±2%±3dgt
	Current frq :±2%±3dgt
