| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | XZH Test |
| प्रमाणन: | CE/ISO |
| मॉडल संख्या: | एक्सएचएचवी535-4टीएस |

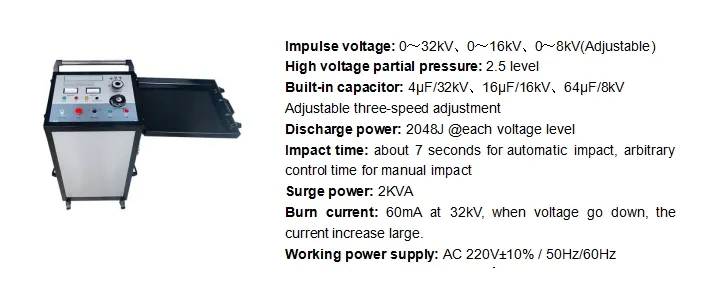

High voltage surge generator XHHV535-4TS |
Surge voltage levels and adjustment ranges |
Level 1 : 0-8KV Level 2: 0-16KV Level 3: 0-32KV |
| Surge voltage levels switch | Manual | |
| Voltage adjustment type | Continuous | |
| Indication | High-voltage side voltage metering, indication of output voltage and current in real time | |
| Surge energy at each level | Up to 2048J | |
| Operating mode | Single trigger, cycle, DC | |
| Operating modes switch | Manual | |
| Impact time | about 7 seconds for automatic impact, arbitrary control time for manual impact | |
| Impact power | 2KVA | |
| Continuous output current | 60mA | |
| Built-in capacitor | 4μF/32kV, 16μF/16kV, 64μF/8kV three-speed adjustment | |
| Safe operation | With zero start protection function, safe and reliable | |
| Discharge | Unique high-voltage measurement design, in the stop state, it will automatically discharge the internal capacitance of the device | |
| Working power | AC 220V±10% 50Hz±2Hz (other voltage and frequency can be customized) | |
| DC withstand voltage testing | Output voltage adjustment and indication range 0-32KV, Output current indication range 0-20A |
|
| Burn current | Fault conditioning (burning) with current up to 60 mA @ 32 kV, 120 mA @ 16kV, 240mA@8kV. |
|
| Connecting cable | High voltage output cable: 5m, Protective earthing cable:5m,power cord 2.5m. Cables can be customized according to customer requirements. | |
| Safety | Over-voltage, Over-current, Overheating protection. Automatic discharge after operation. |
|
| Protection rating | Not lower than IP54 | |
| Working power | AC 220V±15%, 50Hz±2Hz | |
| Dimensions(mm) | 534L×444W×805H | |
| Total weight | About 120kg |
