| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | XZH Test |
| प्रमाणन: | CE/ISO |
| मॉडल संख्या: | XHHV535-4Z |

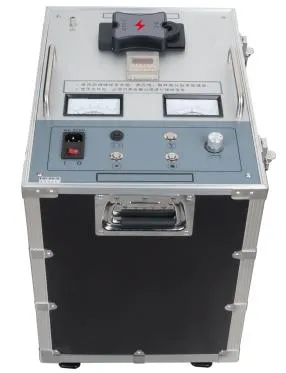

This XHHV535-4Z high voltage surge generator integrates DC high voltage source, energy storage capacitor and discharge ball gap. More than 30 kg, pulse energy storage capacitor more than 20 kg).
The power supply is equipped with high-precision, high-stability special high-voltage electronic components and employs high-frequency high-voltage technology, making the entire machine both structurally simple and incredibly lightweight. Considering that people are accustomed to generating DC high voltage with transformers and operation boxes, the pulse generator is designed with a user-oriented approach and a safe operation mode. It is truly resistant to impact and can operate normally even if there is a short circuit of high voltage to ground. It is currently recognized as the lightest and most user-friendly portable DC shock high-voltage equipment available today.
Features
★With automatic protection functions for overcurrent, overvoltage and overheating;
★High-voltage pulse output is uniform and controllable;
★The super short-circuit protection function can make the high-voltage output directly short-circuit to the ground;
★With double 1.5-level pointer meter display of current and voltage, it is intuitive and clear, and the process of impulse discharge can be seen at a glance clear
★With zero start protection, and potentiometer return to zero output function, safe and reliable;
★Unique high-voltage measurement design, in the stop state, the voltmeter can indicate the capacitor voltage in real time;
★The discharge time can be arbitrarily set within an appropriate interval.
| Impact high voltage | 35KV optional |
| High voltage partial pressure | Voltage Accuracy 1.5 grade |
| Built-in capacitor | 4μF |
| Working power | AC 220V ± 10% 50Hz ± 2Hz(60Hz can be customized) |
| Discharge power | 2450J |
| Ambient temperature | -20 ~ + 50 ºC |
| Impact time | 1 ~ 10 seconds |
| Over temperature protection | 85 ºC |
| Volume/size | 430L × 345W × 545H(mm) |
