| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | XZH Test |
| प्रमाणन: | CE/ISO |
| मॉडल संख्या: | XHZS506S |

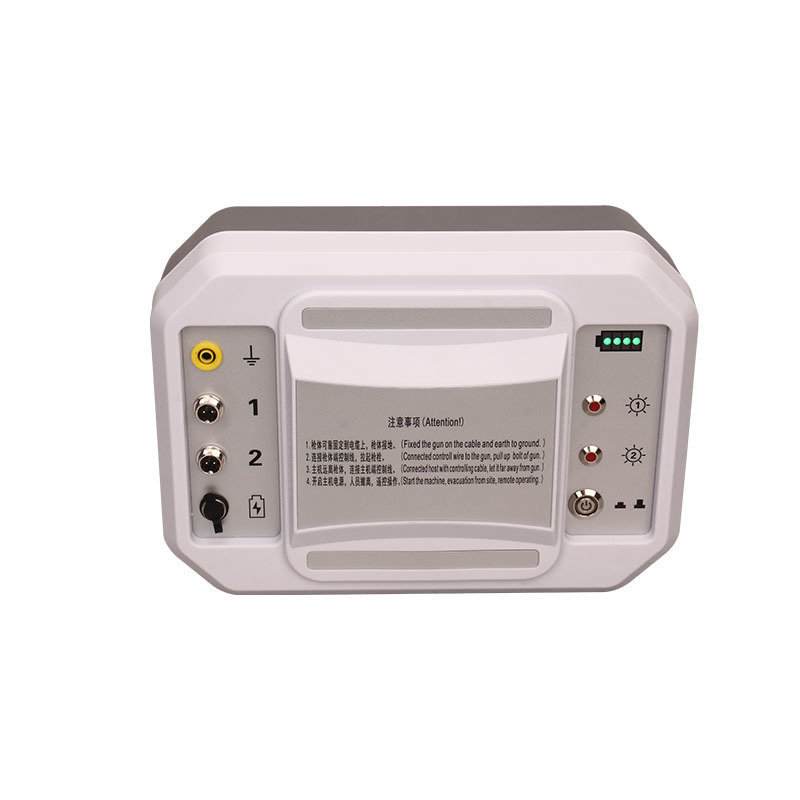

XHZS506S Cable Spiker
Every year in the power system, people get hurt because they accidentally saw the wrong live cables. There's a device that can fix this problem. It's a remote-controlled automatic piercing device that can puncture and damage the cables on the spot. If the cable's live, it'll explode when it gets punctured. If it's not live, it won't do anything.
When you're working on power cable construction, and you need to move or repair the laid cables, you often have to cut them. To keep the workers safe, you need to figure out which cables are live. You have to identify the cables first, and then you can cut them.
There are two ways to check if the cables are live. One way is to look at the original design and construction records. The other way, which is more certain, is to use a remote-controlled automatic puncturing device to short-circuit the cable to the ground or to another phase. This way, you can be sure whether the cable is live or not.
After the cable is identified, before sawing, it is a special instrument for further destructive judgment of the cable
after the cable is identified. 100% confirm whether the cable is live, absolutely guarantee the personal safety of the staff.
1. When the angle between the two guns is not 120°, at least one gun body can achieve the purpose of piercing and form a short circuit point;
2. It is controlled by wired + wireless remote control, and it can be remote controlled through the wall;
3. AC and DC dual-use, built-in lithium battery pack and large-capacity energy storage device, long charging time;
4. Small size and light weight, very suitable for field use.
| Shooter | 2 gun bodies |
| Remote control distance | More than 10 meters, you can remote control through the wall |
| Control line length | 5 meters |
| Fixture diameter | φ30-150mm |
| Working power | Charging AC 220V/50Hz, the built-in battery works continuously for more than 10 hours |
| Controller | 270×230×120mm 2.5kg |
| Whole set | 470×380×210mm 15.5kg (dual gun 506S) |
