40kv 2UF Pulse Energy Storage Capacitor Offer

Name: 40kv 2UF Pulse Energy Storage Capacitor Offer
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: एक्सएचसीसी-2/40
Price: 1,050.00 USD
Availability: InStock

उत्पाद का विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	XZH Test
प्रमाणन:	CE/ISO
मॉडल संख्या:	एक्सएचसीसी-2/40

विस्तृत जानकारी

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

XZH Test

प्रमाणन:

CE/ISO

मॉडल संख्या:

एक्सएचसीसी-2/40

प्रमुखता देना:

High Light

प्रमुखता देना:

40kv pulse energy storage capacitor

2uf high voltage capacitor

cable fault locator capacitor

Trading Information

न्यूनतम आदेश मात्रा:

1unit

पैकेजिंग विवरण:

लकड़ी का बक्सा

प्रसव के समय:

5-8work दिन

भुगतान शर्तें:

टी/टी

आपूर्ति की क्षमता:

2000 यूनिट/वर्ष

उत्पाद का वर्णन

XHCC-2/40

Model NO.

XHCC-2/40

Weight

27kg

Transport Package

Wooden Case

Specification

28*24*36

Trademark

XZH TEST

Origin

Shaanxi

let me tell you about this nifty pulse capacitor. So basically, it's like a little energy bank. It takes the energy from a small - power power supply and stores it up for a bit. But then when the time is right, it just lets it all go in this super quick burst. And when it does that, you get this huge rush of current and a ton of power. It's super useful in all kinds of cool fields. Like, they use it in high - voltage impulse discharge tests to see how things hold up under big power jolts. It's also in the mix for high - energy physics stuff, you know, the kind where they're smashing particles together. And it helps out in those circuits that make things vibrate back and forth. Plus, it's a big deal in geological prospecting, helping people find stuff buried underground.

Ambient temperature: -20~+50ºC;
Altitude: ≤2000 meters, if it is greater than 2000 meters, it will be explained separately;
Capacitance error: ±5%;
Voltage resistance between poles: 1.1~1.5Un 2s Pole to shell: 2Un 60s;
Insulation resistance: RC≥7500MΩ·uF;
Loss: ≤0.01 (1kHz).

Model Description
Example: XHCC-4/35 pulse capacitor
1. 4--Rated capacitance 4uF
2. 35--Rated voltage level 35kV

N.o	model	Rated voltage	Rated capacity	Interpolar withstand voltage	Application
01	3/2000	3kV	2000uF	3.6kV	Impulse discharge
02	6.5/100	6.5kV	100uF	3.6kV	Impulse discharge
03	6.5/200	6.5kV	200uF	7.5 kV	Impulse discharge
04	6.5/500	6.5kV	500uF	7.5 kV	Impulse discharge
05	15/8	15kV	8uF	17.5 kV	Impulse discharge
06	15/8*2	15kV	8uF	17.5 kV	Impulse discharge
07	15/8*3	30kV	2uF	34.5 kV	Impulse discharge
08	35/2	35kV	2uF	39.5 kV	Impulse discharge
09	35/4	35kV	4uF	39.5 kV	Impulse discharge
10	30/4	30kV	4uF	34.5 kV	Impulse discharge
11	40/4	40kV	4uF	45 kV	Impulse discharge
12	40/6	40kV	6uF	45 kV	Impulse discharge
13	100/1	100kV	1uF	110 kV	Impulse discharge

Precautions and Common Faults
1. It is strictly forbidden to hit and collided the high-voltage pulse capacitor, otherwise the internal film will be easily damaged.
2. When using Pulse Energy Storage Capacitors, please read the instructions and the content of the capacitor label to prevent overvoltage use.
3. During use, pay attention to the withstand voltage and safety distance of the connecting wire.
4. After the test is completed, the high voltage end must be fully discharged.
5. During use, if there is abnormal sound inside the capacitor, it is recommended to stop using it, as there is a risk of internal insulation damage.
6. If there are bulges or bulges on the capacitor shell, it is recommended to stop using it, as there is a risk of deterioration of the internal material and insulation reduction.

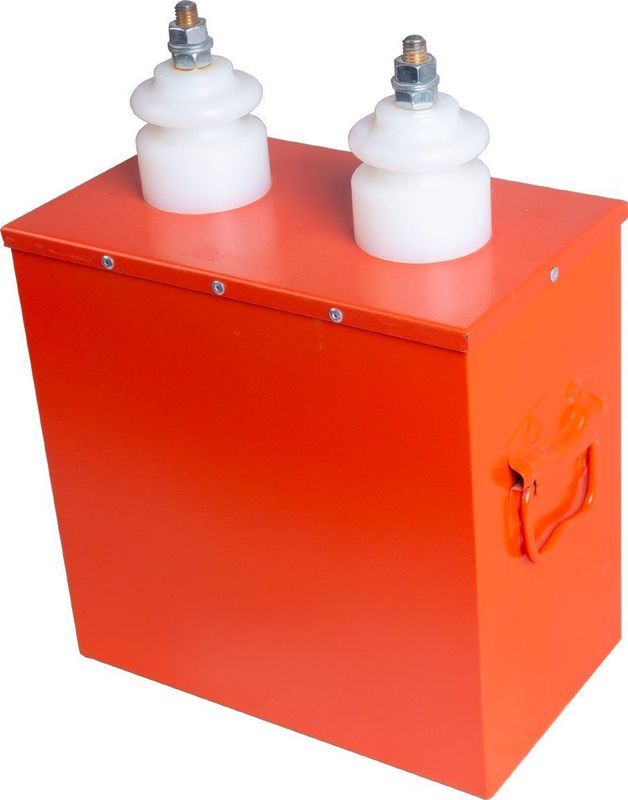

40kv 2UF Pulse Energy Storage Capacitor Offer 0

40kv 2UF Pulse Energy Storage Capacitor Offer 1
